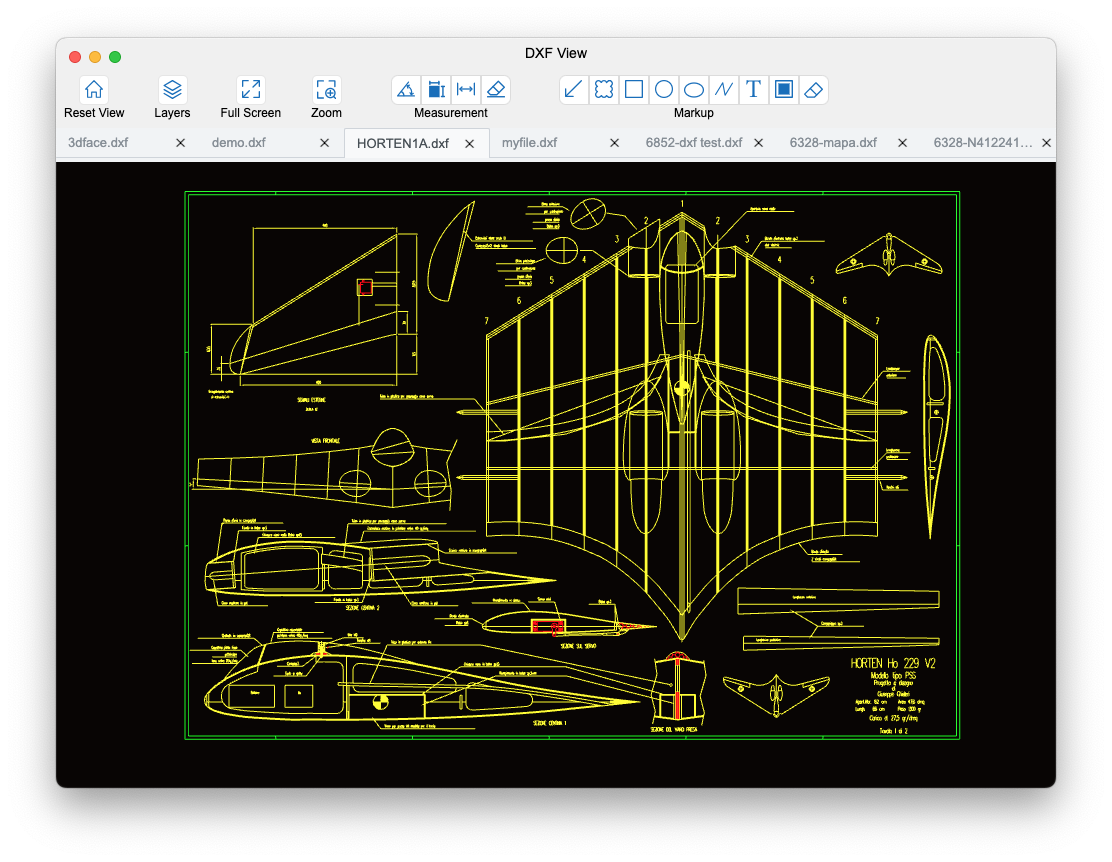

Open and view DXF and DWG files

  • Easily drag and drop to open Autodesk DXF/DWG files.
  • View multiple DXF/DWG files seamlessly and quickly from different tabs
  • Render complex or large DXF/DWG files without readability issues.
  • Support visualization of 3D Wireframe and Shade.
  • Display all the layers and elements without errors, exactly the same as it was created
  • Read the files in full screen mode.
  • Tile the window to the left or right of your screen for comfortable reading.

Zoom, move DXF, DWG files and display the layers

  • Zoom in or out to check the details or overview as you like.
  • Move the drawings, lines, polylines, texts, and so on in the file to any position, so you can adjust the view or compare the files as needed.
  • Reset view if you want to undo Zoom in/out, or Move the files.

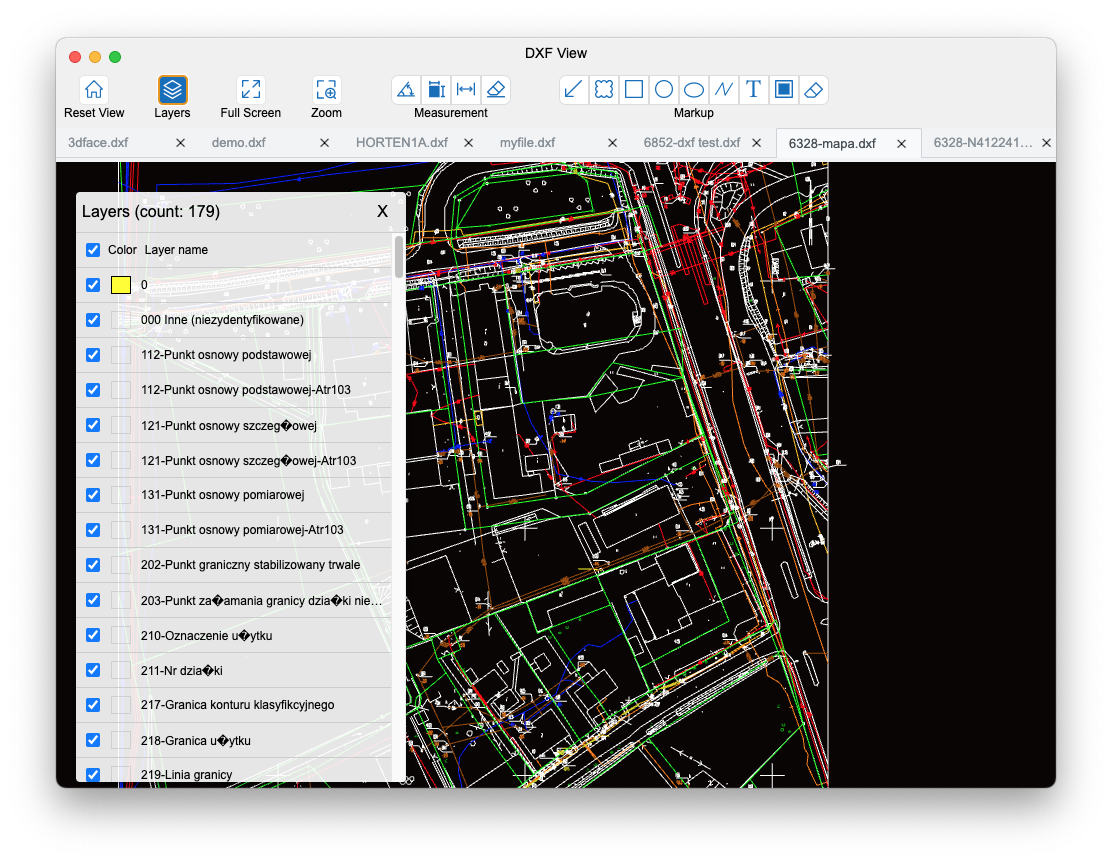

  • Hide or unhide the layers in DXF/DWG file to customize workflow.

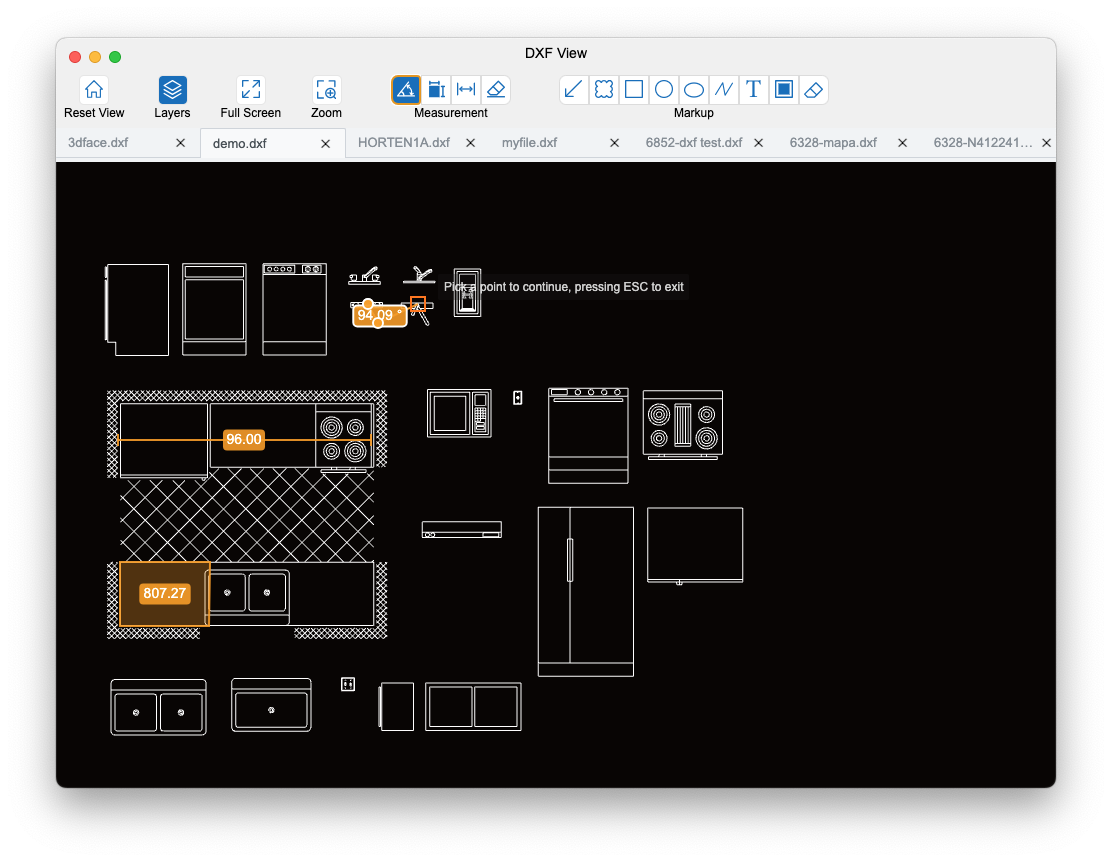

Measure DXF/DWG files

  • Measure angle between 2 lines, edges, geometirc elements and so on, with high accuracy.
  • Measure area of closed shapes within the drawings.
  • Measure the distance between 2 points, edges and so on.
  • Clear all measurement with one click if you want to undo.

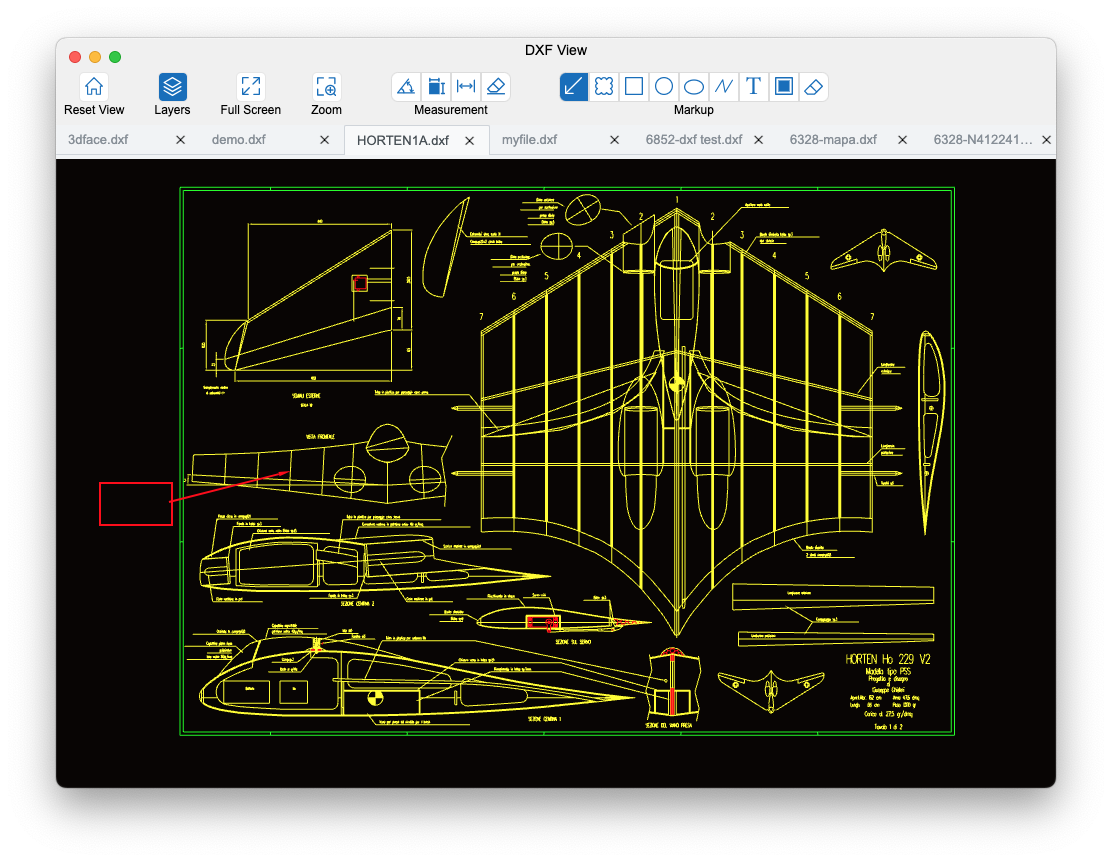

Markup DXF/DWG files

  • Annotate with guideline or cloud rectangle for design reviews and collaboration.
  • Add rectangle, circle, ellipse and polyline to markup the drawings.
  • Add text comments or annotations to the design.
  • Change brush color with ease.
  • Save or clear all annotations with one click.

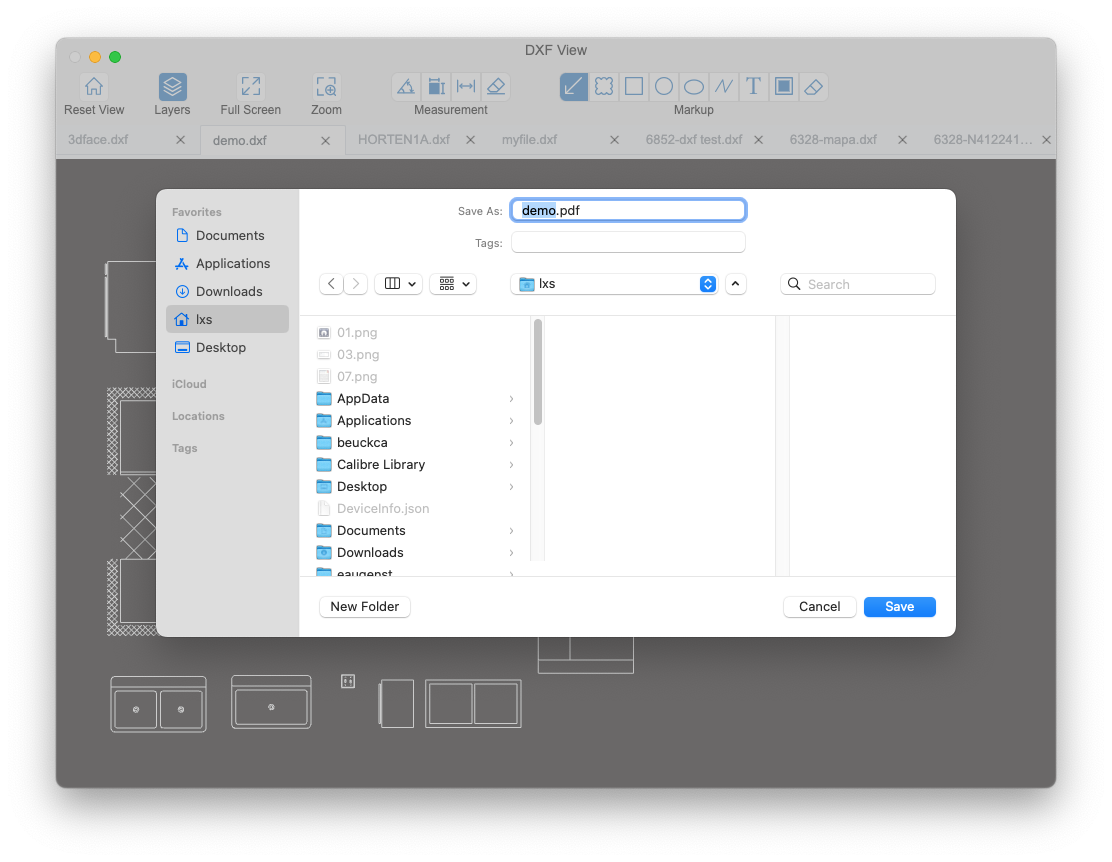

Export DXF, DWG to PDF and Print

  • Save DXF, DWG files as PDF format without losing quality, so you can easily share, upload or distribute easily.
  • Print out the AutoCAD DXF, DWG files directly, you can select copies, page range, paper size, orientation, scale and other details to print.

Testimonial

Christina
America

As a designer, I have to show my design to a lot of clients, and explain it. I hate to open software to read. DXF viewer really helps, and it is very fast to open the draft. I can display my drawing from different angle.

King
U.K

It is great, and I can use it to check my designer’s work, I don’t need to download and buy 3D software.

David
Canada

As an interior design, I really need a software like DXF Viewer. With this tool, I can open my work everywhere without launching CorelCAD or Autodesk.
